Paint booths exhaust plant air, heating, and air-conditioning. This is both costly and inefficient. Air is taken for granted, but is a critical part to any work environment. Air - its quality, temperature, contaminants, and movement - have an enormous impact on employee comfort and productivity. Most commercial and industrial buildings were designed to meet specific ventilation requirements.
As a company grows, changes in manufacturing operations, space, and the number of employees can cause an uncomfortable and inefficient work environment. Air Replacement Units or Air Make-Up Units are used to control the air in the working environment. Make-up air is a system that continuously replaces the air being exhausted with fresh air - air that can be heated, cooled, humidified, dehumidified, filtered, or simply moved by an induction fan. Most importantly, air replacement solves the problem of air contamination, exchanging stale air, eliminating drafts, and maintaining proper comfort zones.
Our systems can be used for plant replacement air or can be connected directly to a paint booth. Systems connected directly to the paint booth provide the best painting environment and the ability to provide a cure cycle required by many of the current high solids paints.
Air Make-Up Replacement Specifications:Automatic Booth Pressure Balancing Control System Standard Equipment:
No more need for constantly adjusting the exhaust fan as the exhaust filters load up with paint. The Automatic Balancing System speeds up the exhaust fan to keep the pressure balanced in the booth and the airflow at a proper speed. Set the pressure desired in the booth and the system through the readings on the photohelic booth cabin pressure sensor will automatically adjust the speed of the exhaust fan to maintain the desired preset pressure.
Intake Airflow Control System - Adjustable Airflows for Spray - Flash - Bake Cycles:System includes Variable Frequency Drives for both intake and exhaust volume control. Includes the Deluxe Digital Control Panel. Includes Auto Balance system, set the pressure desired in the booth and the airflow desired from the Air Make Up Unit and the booth through the readings on the photohelic and the preset pressure settings will automatically balance the fans to maintain the desired airflow and pressure.
- Direct Fired Gas Air Make-Up Unit - Air Make-Up Unit -100% Fuel Efficiency.

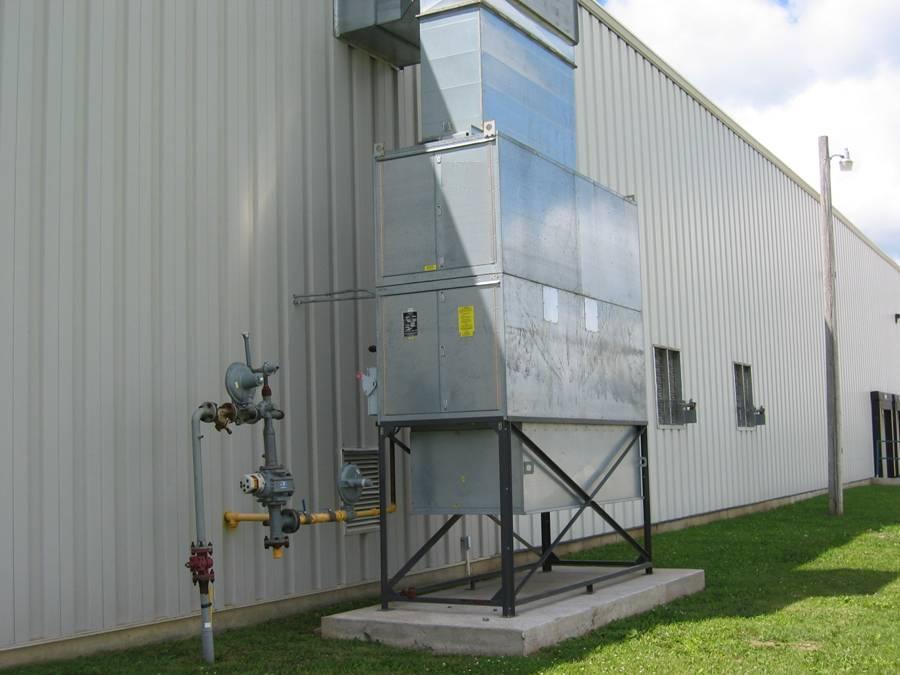

- Horizontal Roof Mount or Verticle with Mounting Stand
- 100% Replacement Air
- Electric Current: 208-230-460/60/3 3-wire
- ETL Label
- Outdoor Safety Switch (Disconnect) and Motor Starters
- Unit Location: Outdoor Installation
- Motor - ODP - High Efficiency EPACT
- 125° Temperature Rise (deg F)
- Gas Pressure: 1# to 5# (Natural Gas)
- Gas Manifold: ANSI w/2 Solenoid Gas Valves
- Temperature Control System: 401M - Maxitrol
- “M Series” Programmable Temperature Controller
- G-90 Galvanized Casing - Unpainted Casing
- Intake Screen
- Flame Failure Light and High Temp Limit
- Burner On/Off Intake Air Duct-stat
- Standard Equipment - Discharge Damper with Automatic Actuator
- Standard Equipment - Fused Disconnect
- Standard Equipment - Motor Starter
- Standard Equipment - V-Bank Pre Filter System with – 2” Cleanable Filters
- Standard Equipment - Deluxe Digital Control Panel
- Standard Equipment - Exhaust Fan Variable Frequency Drive
- Standard Equipment - Intake Fan Variable Frequency Drive
- Standard Equipment - Automatic Booth Pressure Balancing System
- Standard Equipment - Intake Airflow Control System
